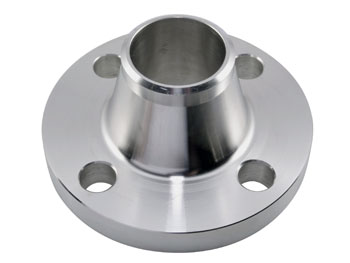

Stainless Steel Flanges
TUBA offer Stainless Steel Buttweld Stainless Steel Flanges according to ASME, EN, ISO and DIN standards.Stainless Steel Pipe Flange is available in numerous grades and their mechanical properties vary widely. These Ss Pipe Flanges are used in acid and fertilizer production plants due to their corrosion resistance.
Stainless Steel Flanges is a forged, or it is called as a cast ring which is designed to connect different sections of the pipe or any other machinery that requires an intermediate connecting point. The ASTM A182 F304 Flanges could be cleaned easily with a mild detergent. Despite undergoing repeated cleaning processes, these flanges won’t wear away, an ability it exhibits due it its good wear resistance properties.
We own a highly experienced quality control expert team that performs several tests on SS Flanges to check different characteristics and parameters. The mechanical properties which are covered by the specification include tensile strength, yield strength as well as elongation and Brinell hardness values of the Stainless Steel 304 Flanges. Flanges can be stored for the longer duration in our warehouse, and from here urgent demands of industries across the globe can be completed.
Stainless Steel Pipe Flanges Specification
| A182 Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| Stainless Steel Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| SS Grade Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM A182 Stainless Steel Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASME SA 182 Flange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASME SA182 Stainless Steel Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| A182 Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common types of ASTM A182 Stainless Steel Flange | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASME SA182M SS Flange Production technique | Forged, Heat treated and machined |
| A182 Grade Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| ASME A182 SS Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM A182 SS Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| SS Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of Stainless Steel ASTM A182 Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| ASME SA182M Stainless Steel Flange Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| SS EN 1092-1 Flange Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi & Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Projects in the field

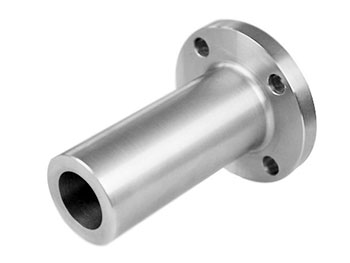

Stainless Steel Long Weld Neck Flanges

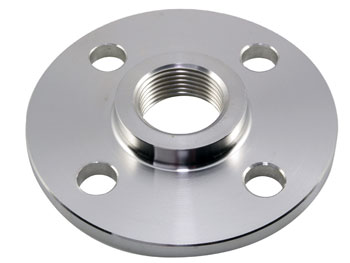

Stainless Steel Screwed Flanges

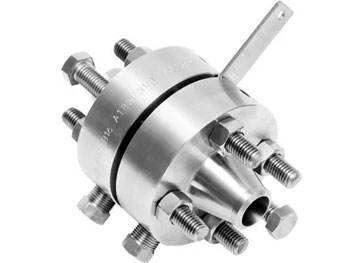

Stainless Steel Orifice Flanges

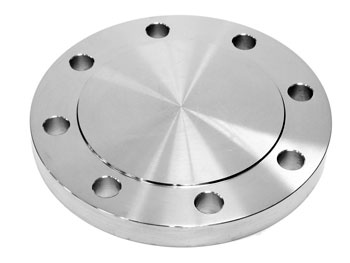

Stainless Steel Blind Flanges

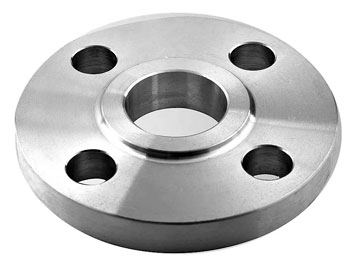

Stainless Steel Slip-on Flanges

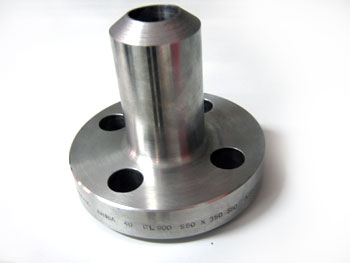

Stainless Steel Nipolet Flanges

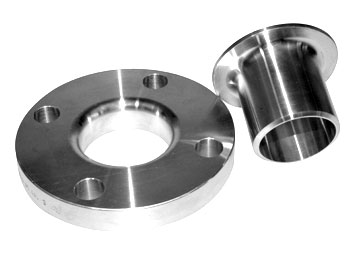

Stainless Steel Lap Joint Flanges
Stainless Steel Weld Neck Flanges

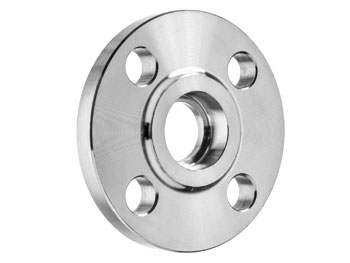

Stainless Steel Socket weld Flanges
Schedule / Class of Stainless Steel Flanges
| Flange Schedule/Class | Pipe Size - Pipe Flanges | Flange Connection Type | Flange Material | Max. Pressure |
|---|---|---|---|---|
| ASME B16.5 Class 150 | 1/2" | FNPT | Stainless Steel 304 / 304L Flanges | 150 psi |
| ASME B16.5 Class 150 | 1/2" | Socket Weld | Stainless Steel 304 / 304L Flanges | 275 psi |
| ASME B16.5 Class 150 | 1/2" | Welded | Stainless Steel 304 / 304L Flanges | 150 psi |
| ASME B16.5 Class 150 | 3/4" | FNPT | Stainless Steel 304 / 304L Flanges | 150 psi |
| ASME B16.5 Class 150 | 3/4" | Socket Weld | Stainless Steel 304 / 304L Flanges | 275 psi |
| ASME B16.5 Class 150 | 1-1/4" | Socket Weld | Stainless Steel 304 / 304L Flanges | 275 psi |
| ASME B16.5 Class 150 | 1-1/2" | Socket Weld | Stainless Steel 304 / 304L Flanges | 275 psi |
| ASME B16.5 Class 150 | 2" | FNPT | Stainless Steel 304 / 304L Flanges | 150 psi |
| ASME B16.5 Class 150 | 2" | Socket Weld | Stainless Steel 304 / 304L Flanges | 275 psi |
| ASME B16.5 Class 150 | 2-1/2" | Socket Weld | Stainless Steel 304 / 304L Flanges | 275 psi |
| ASME B16.5 Class 150 | 3" | Socket Weld | Stainless Steel 304 / 304L Flanges | 275 psi |
| ASME B16.5 Class 150 | 4" | FNPT | Stainless Steel 304 / 304L Flanges | 150 psi |
| ASME B16.5 Class 150 | 4" | Socket Weld | Stainless Steel 304 / 304L Flanges | 275 psi |
| ASME B16.5 Class 300 | 1/2" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 1/2" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 1" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 1" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 1-1/4" | FNPT | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 1-1/4" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 1-1/2" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 1-1/2" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 2" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 2" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 2-1/2" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 2-1/2" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 3" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 3" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 4" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
| ASME B16.5 Class 300 | 4" | Slip On | Stainless Steel 304 / 304L Flanges | 720 psi |
ASTM A182 stainless steel flange pressure rating
| ASA / ANSI /ASME B16.34 | ANSI PRESSURE RATING CHART | ||||||
|---|---|---|---|---|---|---|---|
| °F Temperature | 150 LBS | 300 LBS | 400 LBS | 600 LBS | 900 LBS | 1500 LBS | 2500 LBS |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
Dimensions Of Stainless Steel Flanges
| NPS | Flange OD | Flange Thickness | Raised Face Dia. | Dia. of Hub at Base | Length Thru Hub | Dia. or Bore | Dia. of Hub at Bevel | Fillet Radius | Socket Depth | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weld Neck | Slip-On Threaded Socket | Lap Joint | Slip-on Socket | Lap Joint | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-3/4 | 9/16 | 1-3/8 | 1-1/2 | 2-1/16 | 7/8 | 7/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 4-5/8 | 5/8 | 1-11/16 | 1-7/8 | 2-1/4 | 1 | 1 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-7/8 | 11/16 | 2 | 2-1/8 | 2-7/16 | 1-1/16 | 1-1/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 5-1/4 | 3/4 | 2-1/2 | 2-1/2 | 2-9/16 | 1-1/16 | 1-1/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 6-1/8 | 13/16 | 2-7/8 | 2-3/4 | 2-11/16 | 1-3/16 | 1-3/16 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6-1/2 | 7/8 | 3-5/8 | 3-5/16 | 2-3/4 | 1-5/16 | 1-5/16 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7-1/2 | 1 | 4-1/8 | 3-15/16 | 3 | 1-1/2 | 1-1/2 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 8-1/4 | 1-1/8 | 5 | 4-5/8 | 3-1/8 | 1-11/16 | 1-11/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 9 | 1-3/16 | 5-1/2 | 5-1/4 | 3-3/16 | 1-3/4 | 1-3/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 10 | 1-1/4 | 6-3/16 | 5-3/5 | 3-3/8 | 1-7/8 | 1-7/8 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 11 | 1-3/8 | 7-5/16 | 7 | 3-7/8 | 2 | 2 | 5.66 | 5.69 | 5.56 | 7/16 | |
| 6 | 12-1/2 | 1-7/16 | 8-1/2 | 8-1/8 | 3-7/8 | 2-1/16 | 2-1/16 | 6.72 | 6.75 | 6.63 | 1/2 | |
| 8 | 15 | 1-5/8 | 10-5/8 | 10-1/4 | 4-3/8 | 2-7/16 | 2-7/16 | 8.72 | 8.75 | 8.63 | 1/2 | |
| 10 | 17-1/2 | 1-7/8 | 12-3/4 | 12-5/8 | 4-5/8 | 2-5/8 | 3-3/4 | 10.88 | 10.92 | 10.75 | 1/2 | |
| 12 | 20-1/2 | 2 | 15 | 14-3/4 | 5-1/8 | 2-7/8 | 4 | 12.88 | 12.92 | 12.75 | 1/2 | |
| 14 | 23 | 2-1/8 | 16-1/4 | 16-3/4 | 5-5/8 | 3 | 4-3/8 | 14.14 | 14.18 | 14.00 | 1/2 | |
| 16 | 25-1/2 | 2-1/4 | 18-1/2 | 19 | 5-3/4 | 3-1/4 | 4-3/4 | 16.16 | 16.19 | 16.00 | 1/2 | |
| 18 | 28 | 2-3/8 | 21 | 21 | 6-1/4 | 3-1/2 | 5-1/8 | 18.18 | 18.20 | 18.00 | 1/2 | |
| 20 | 30-1/2 | 2-1/2 | 23 | 23-1/8 | 6-3/8 | 3-3/4 | 5-1/2 | 20.20 | 20.25 | 20.00 | 1/2 | |
| 24 | 36 | 2-3/4 | 27-1/4 | 27-5/8 | 6-5/8 | 4-3/16 | 6 | 24.25 | 24.25 | 24.00 | 1/2 | |
ASME B16.9 Stainless Steel Flages Weight Chart
| Pipe Normal Diameter (inch) | Outer diameter Flange | Thicjness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
Manufacturing Standards / Pressure Rating of Stainless Steel Pipe Flanges
| ASME/ANSI B 16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange, |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
ANSI B16.5 Stainless Steel Flange Forms & Availability (Forged and Plate Flanges)
| Products | Size | |
| ASTM A182 SS Slip-On Flanges | ASTM A182 SS Threaded Flanges | Sizes 1/8″ – 36″ Raised Face or Flat Face |
| ASTM A182 SS Weld Neck Flanges | ASTM A182 SS Socket Weld Flanges | |
| ASTM A182 SS Blind Flanges | ASTM A182 SS Reducing Flanges | |
| ASTM A182 SS Lap Joint Flanges | ASTM A182 SS Plate Flanges | |
| ASTM A182 SS Orifice Flanges | ASTM A182 SS Forged Flanges | |
| ASTM A182 SS Ring Type Joint Flanges | ASTM A182 SS Square Flanges | |
Stainless Steel Flanges Standard
| American Steel Flanges Standard | |
| Standard Code | Standard Name |
| ANSI ASME SA-182 | Forged Flanges |
| ANSI ASME B16.5 | Slip on flange, Welding neck flange, Blind flange, Threaded flange, Lap joint flange, RTJ flange |
| ASME – B 16.47 | Welding neck flange, Blind flange |
| ASME – B 16.36 | Welding neck flange Slip on flange |
| German Steel Flanges Standard | |
| DIN 2527 | Steel Blind Flanges, BLRF |
| DIN 2573 / 2576 | Flat Flange for Welding (Slip On) |
| DIN 2673 | Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars) |
| DIN 2641 / 2642 | Lapped / Loose (Lap Joint) Flanges Plain Collars |
| DIN 28115 | Long Neck Welding Flanges |
| DIN PN10, PN16 | SS PN10 Flanges, SS DIN PN 10 Flanges, SS PN16 Flange |
| DIN PN20, PN25 | SS PN20 Flanges, SS DIN PN 25 Flanges |
| DIN PN40, PN50 | SS PN40 Flanges, SS DIN PN 50 Flanges |
| Japanese Steel Flanges Standard | |
| JIS B2220 | Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL) |
| JIS B2291 | Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL) |
| JIS 5K, 10K | SS 5K SORF Flanges, SS 10K SOFF Flanges |
| JIS 16K, 20K | SS 16K Blind Flanges, SS 20K BLRF Flanges |
| JIS 30K, 40K | SS 30K Slip on Flanges, SS 40K Blind Flanges |
| Italian Flanges Standard | |
| UNI FLANGES | Plan flanges (2276, 2277, 2278, 6083, 6084) Welding neck (2280, 2281, 2282, 2283, 2284, 2285, 2286) Lapped flanges (6088, 6089, 6090, 2999, 2300) Blind flanges (6091, 6092, 6093, 6094, 6095, 6096, 6097) threaded flanges (2253, 2254) |
| British Standard Pipe Flanges Standard | |
| BS 10 Table D | SS BS 10 Table D Flanges, Table D Pipe Flange |
| BS 10 Table E | SS BS 10 Table E Flanges, Table E Pipe Flange |
| BS 10 Table F | SS BS 10 Table E Flanges, Stainless Steel Table E Flanges |
| BS 10 Table H | SS BS 10 Table E Flanges, Stainless Steel Table E Pipe Flanges |
